Details Description
Features:

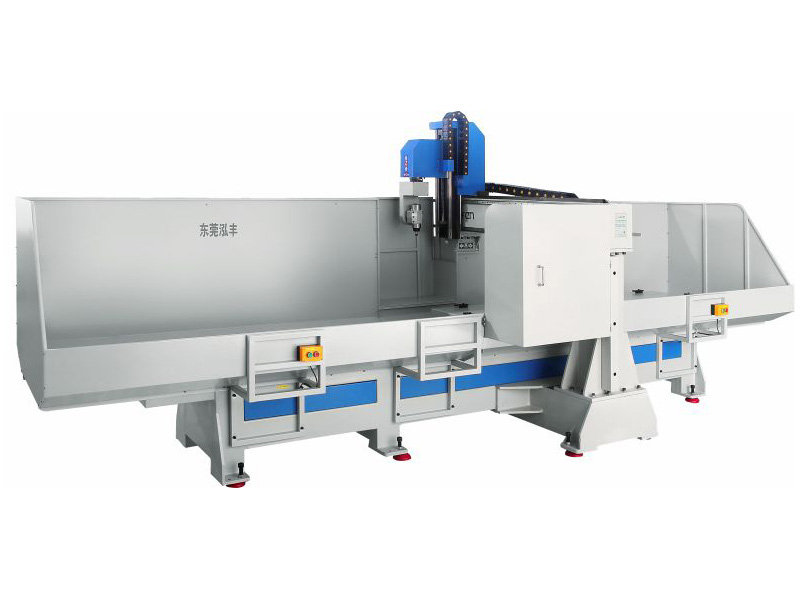

Multi-axis CNC machining, high speed, high accuracy, improve production efficiency in the manufacturing process, saving labor costs.
The main technical parameters:
Multi-axis CNC machining, high speed, high accuracy, improve production efficiency in the manufacturing process, saving labor costs.
The main technical parameters:
| Machine Size | 4500mm*2000mm*1950mm |
| Weight | 2000kg |
| X Axis Stroke | 1250mm |
| Y Axis Stroke | 2330mm |
| Z Axis Stroke | 460mm |
| C Axis Stroke | ±500 degree |
| B Axis Stroke | ±100 degree |
| The Highest Processing Speed | xy35m/min Z10m/min Cb10m/min |
| The Highest Air Velocity | xy35m/min Z10m/min Cb10m/min |
| Spindle Motor Voltage | 220v |
| Spindle Motor Power | 800w |
| Spindle Motor Maximum Speed | 24000r/min |
| Spindle Motor Cooling Mode | Natural cold |
| Power Supply | Three-phase AC 380v |
| Rated Power | 5.5kw |
